LD series mixing hopper

The LD series mixing hopper includes: LDZ lifting mixing hopper, LDT lifting mixing hopper, and LDY square turnover hopper.

13606122988

Details
Parameters
Photos

Details

LDZ Lifting the mixing hopper

LDT Lifting mixing hopper

LDY Square turnover hopper

Parameters

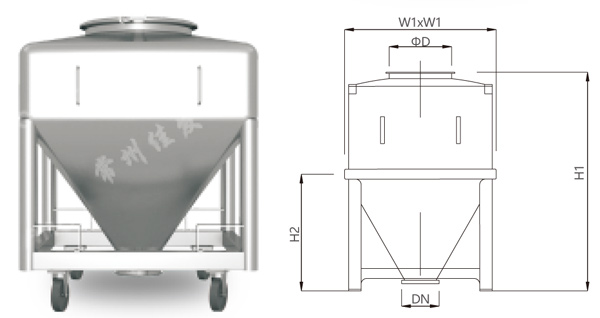

Technical parameters of LDZ lifting mixing hopper

Model	Volume L	Main structural dimensions
Model	Volume L	H1	H2	H3	ΦD	Φd	W1	DN
LDZ-300	300	1118	960	138	400	125	794	200
LDZ-400	400	1287	1130	165	400	125	794	200
LDZ-600	600	1366	1200	151	500	125	994	200
LDZ-800	800	1545	1375	118	500	125	994	200
LDZ-1000	1000	1586	1400	168	500	150	1194	250
LDZ-1200	1200	1736	1550	181	500	150	1194	250
LDZ-1500	1500	1868	1680	99	500	150	1194	250
LDZ-1800	1800	1982	1800	141	500	150	1194	250
LDZ-2000	2000	2238	2055	113	500	150	1194	250

Technical parameters of LDT lifting mixing hopper

Model	Volume L	Main structural dimensions
Model	Volume L	H1	H2	H3	ΦD	Φd	W1	DN
LDT-50	50	714	500	130	630	200	100	150
LDT-100	100	910	550	204	630	400	100	150
LDT-200	200	946	700	100	770	400	100	200
LDT-300	300	1258	800	180	788	400	125	200
LDT-400	400	1318	850	166	888	400	125	200
LDT-600	600	1475	950	163	988	500	125	200
LDT-800	800	1508	1000	141	1088	500	125	200
LDT-1000	1000	1672	1050	125	1210	500	125	250

Technical parameters of LDY square turnover hopper

Model	Volume L	Main structural dimensions
Model	Volume L	H1	H2	H3	H4	ΦD1	W1	W2	DN
LDY-500	500	1280	920	185	100	500	894	900	200
LDY-600	600	1416	920	185	100	500	894	900	200
LDY-800	800	1532	970	185	100	500	994	1000	200
LDY-1000	1000	1674	1070	185	125	500	1094	1100	250
LDY-1200	1200	1686	1170	211	131	500	1194	1200	250
LDY-1500	1500	1873	1170	211	99	500	1194	1200	250
LDY-1800	1800	1968	1250	211	103	500	1294	1300	250
LDY-2000	2000	2046	1470	100	190	500	1400	1406	250
LDY-2500	2500	2211	1350	100	70	500	1400	1406	250
LDY-3000	3000	2402	1470	100	140	500	1494	1500	250
LDY-3500	3500	2570	1570	120	140	500	1600	1606	250
LDY-4000	4000	2770	1650	120	140	500	1600	1606	250

All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.
